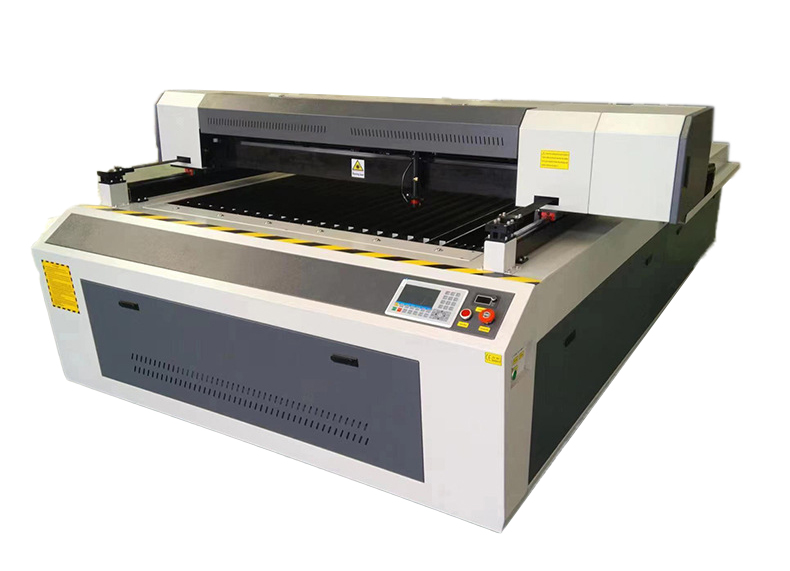

Brand -Eastlaser Model -EAST1325 Standards -Meeting CE standards in terms of quality and safety Warranty -the entire machine 1 year limited warranty
brand - eastlaser
model - east1325
standards - meet ce standards in terms of quality and safety
warranty - 1 year limited warranty on entire machine
1. the co2 laser cutting machine adopts an open workbench and is widely used in cutting and engraving high-precision, high-speed and large-size materials such as advertising, light industry, woodworking, and handicrafts.
2. powerful stepper motor and high-imported hiwin linear guide ensure speed and stability.

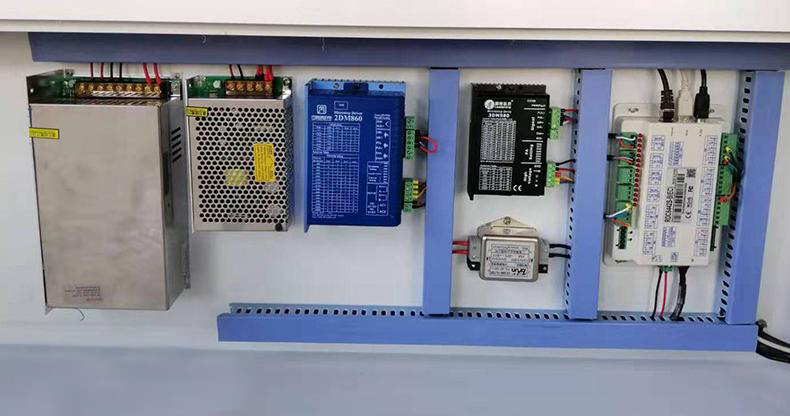

3. dsp control: rd6442 control system has high speed, stability and strong anti-interference ability. advanced usb control and flash drive (u disk) offline control system are optional.

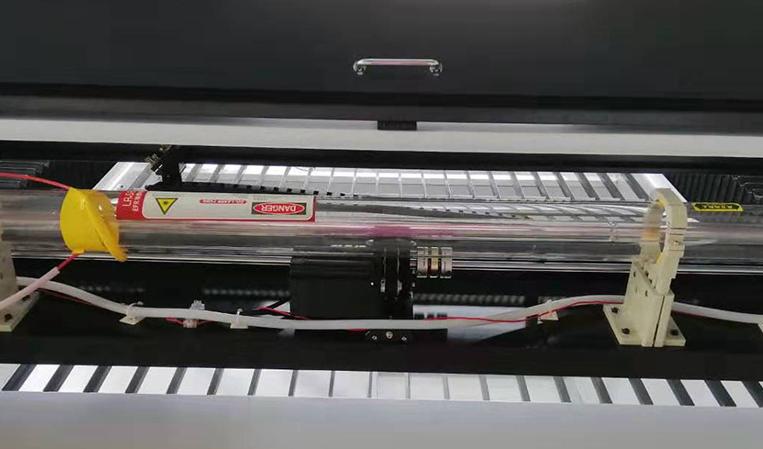

4. independent research and development of high-efficiency laser power: new high-voltage switching mode, pwm main control technology, more stable.
5. professional software for laser machines, which can support plt, dxf, bmp, ai, dsf formats, and is suitable for drawing programs such as corel draw, photoshop, and auto-cad.
6. the co2 laser cutting machine has 512 memories, which can save and store files in the machine and work without being connected to a computer.
7. the good design of the dust-proof structure of the x and y axes ensures a longer service life of the machine.

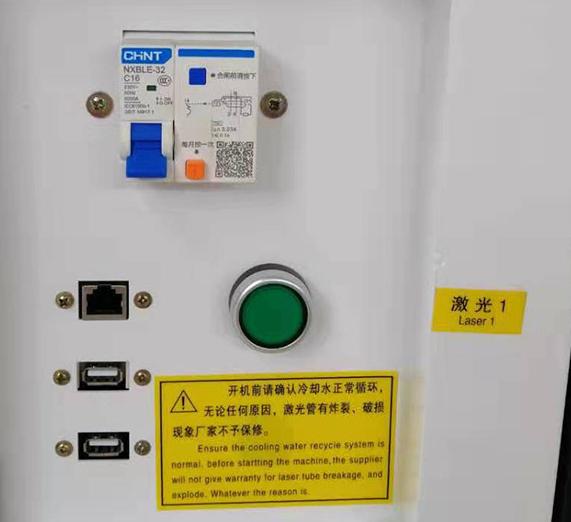

8. stable and complete design concept, using advanced industrial cooling system and water alarm automatic protection function to improve the stability and safety of continuous operation. the perfect dust-proof and anti-pollution design greatly improves the overall stability of the machine.
9. it adopts flying line design, unique structure, small optical path deviation, high stability and easy adjustment.

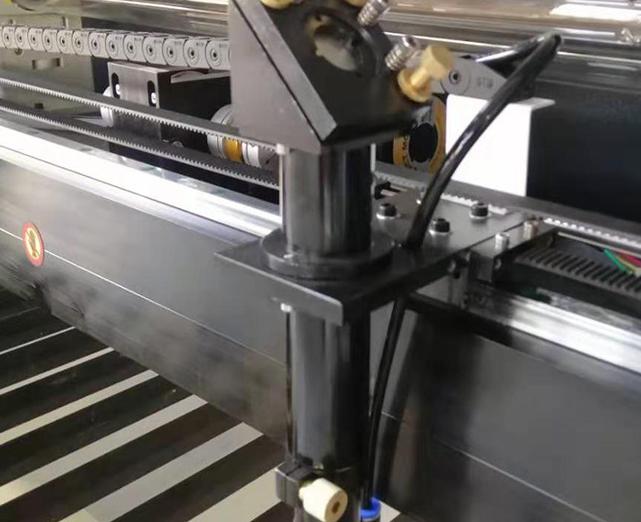

10. the optical accessories adopt the best imported k9 reflector and front focusing mirror, whose reflectivity and transmittance are the best, and the light spot is more delicate and cutting-edge.

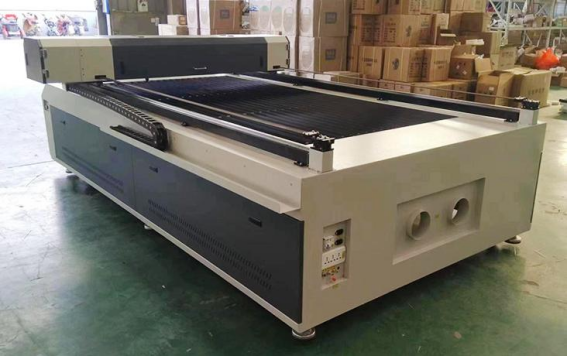

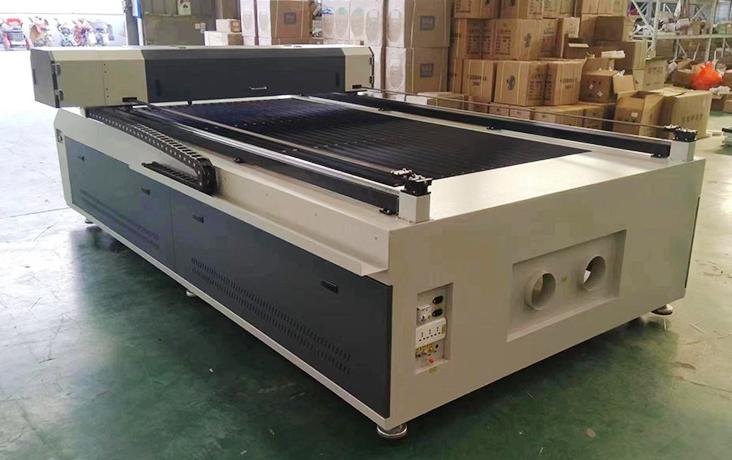

machine model | EAST1325 |
laser power | 80/100/120/150W |
resolution | ≤4000dpi |
motor | three-phase stepper motor |
power supply | 220V±10%50HZ 110V±10%50/60HZ |
positioning accuracy | <0.15mm |
total power | <1500W |
engraving speed | 0-64000mm/min |
cutting speed | 0-36000mm/min |
interface communication | USB WEB |
working area | 1300mmx2500mm |
working temperature | 5℃~45℃ |
working humidity | 5%-90% (no condensation) |
- rotating attachment
- cellular workbench
- electric lifting table (z-axis)
co2 laser cutting machine applicable industries:
co2 laser cutting machines are used in cloth, leather, toys, computer embroidery cutting, molds, handicrafts, bamboo and wood, advertising and architectural decoration, packaging and printing, paper products and other industries.
applicable materials for co2 laser cutting machine:

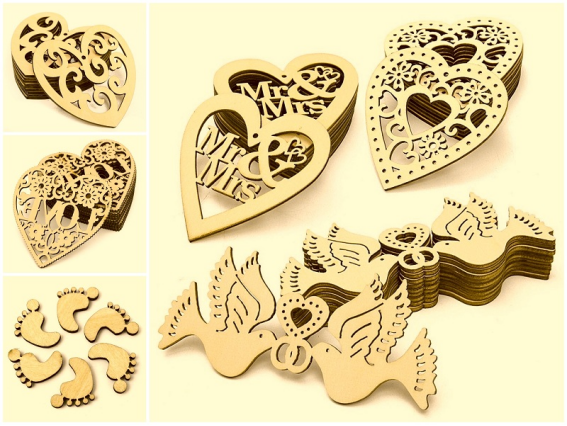

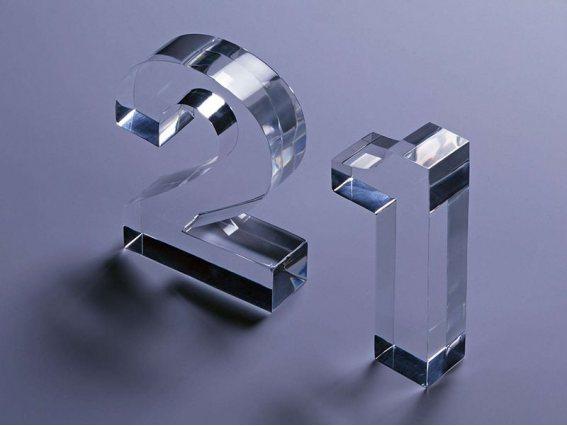

co2 laser cutting machine can be used to engrave and cut hard non-metal materials, such as acrylic, color plate, abs board, rubber, plastic, cloth toys, leather, wool, crystal, glass, ceramic tile, jade, bamboo, wood, etc.
