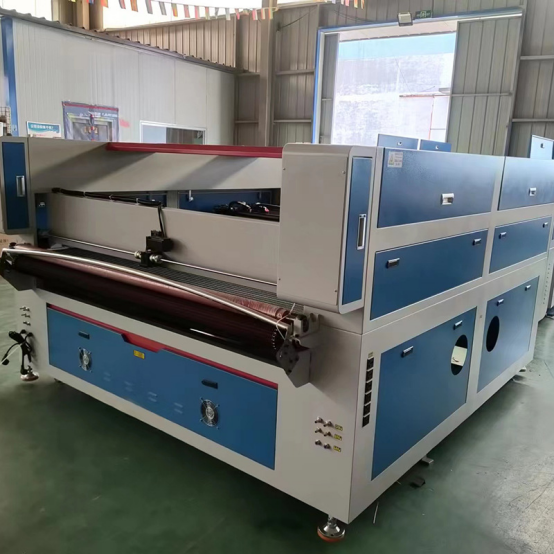

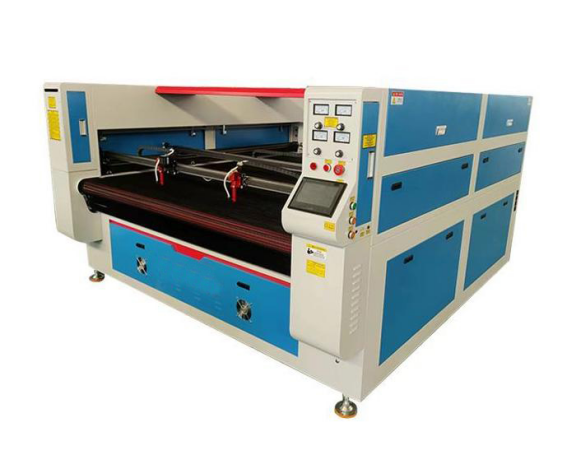

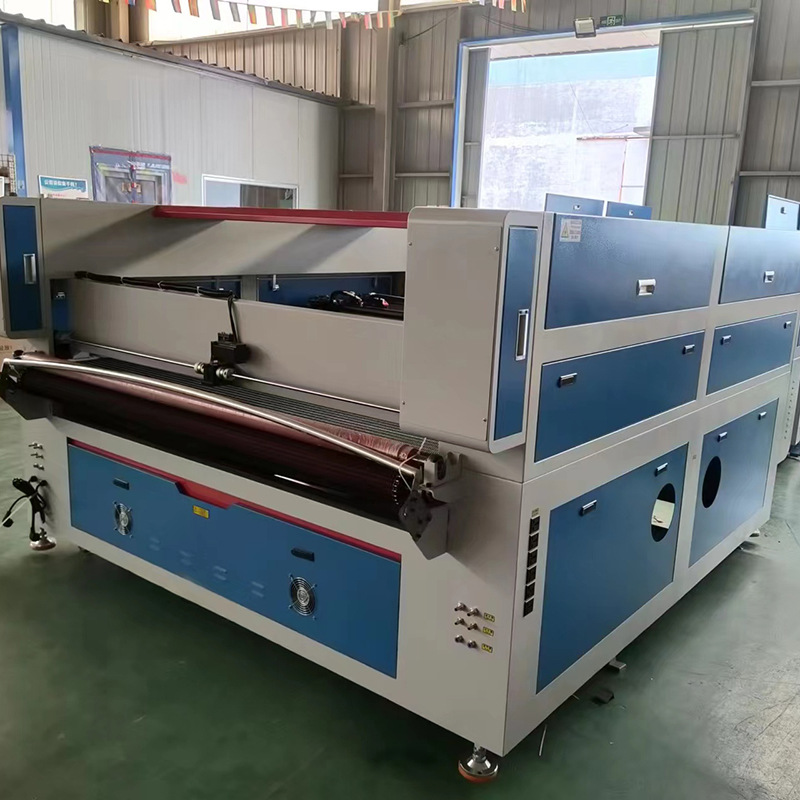

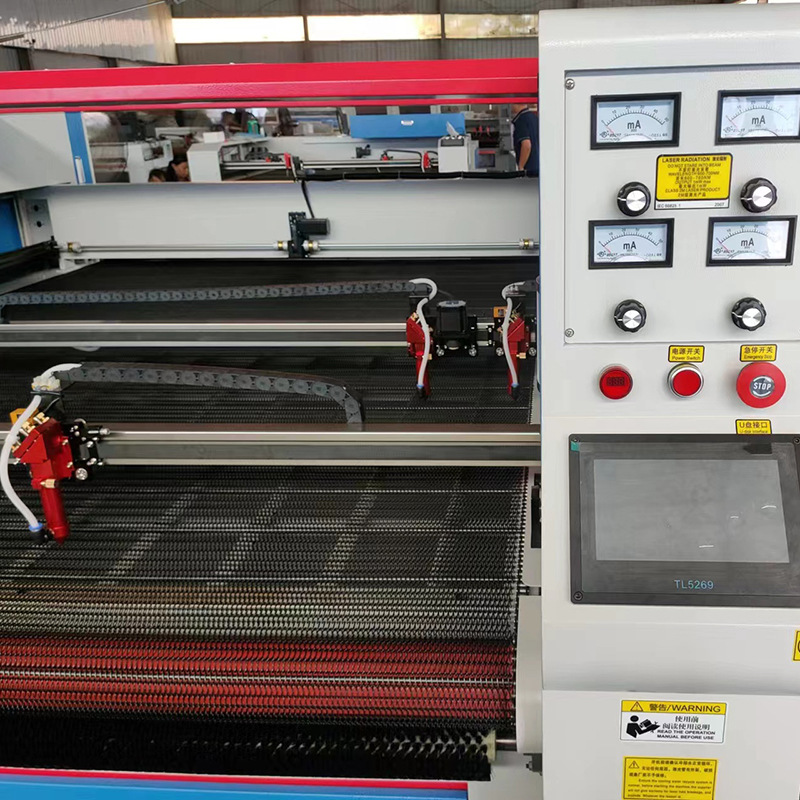

Brand -Eastlaser Model -EAST1820 Standards -Meeting CE standards in terms of quality and safety Warranty -the entire machine 1 year limited warranty
brand - eastlaser
model - east1820
standards - meet ce standards in terms of quality and safety
warranty - 1 year limited warranty on entire machine

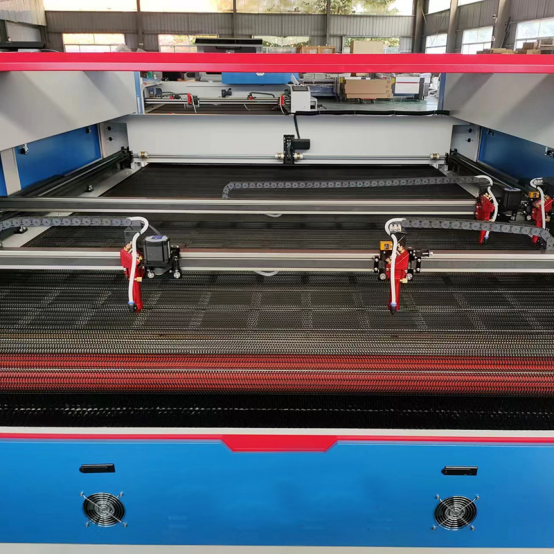

1. add an automatic feeding system (roller feeder or roller conveyor) to save time and cost and improve work efficiency.
2. the roller table adopts a special automatic feeding device to facilitate the free movement of processing objects on the surface of the cutting machine.
3. the automatic cloth collection device is very convenient for users to collect clothes. the windows are made of fire-resistant glass, making the machine safer.
4. linear guide rails and transmission precision gears ensure precision and high speed, and the open stainless steel meshing workbench ensures easy operation and wear resistance.
5. the track correction device can prevent track misalignment during work.
6. the mobile system uses taiwan's shanghai silver linear guides and precision gears, combined with advanced stepper motors to ensure working accuracy.
7. fully supports design software, such as cad, coreldraw, and photoshop, and has a friendly human-machine interface that closely meets industry needs.
8. ccd camera (charge coupled device camera) is optional, automatic positioning cutting machine with camera.
working area | 1800*2000mm |
laser power | 80-150w optional |
laser type | co2 sealed glass laser |
cooling type | water cooling system |
engraving scan speed | 0-60000mm/min |
cutting speed | 0-40000mm/min |
laser energy control | 0-100% software setting |
lens | a complete set of imported american laser transmission lenses |
minimal shaped text | chinese characters: 2.0*2.0mm english: 1.0*1.0mm |
maximum scanning accuracy | 4000dpi (ccd vision system can be installed as needed) |
positioning accuracy | ≤+0.01mm |
control software | dsp control system |
color separation cutting | have |
auxiliary device | exhaust fan and exhaust pipe |
drive system | stepper motor and belt drive system |
working environment | temperature: 1-45℃ humidity: 5-95% |
support software | tajima/cdr/p/cad, etc. |
support graphic formats | DST/PLT/BMP/DXF/DWG/PS/CAD等 |
power supply | AC110/220V+10%,50/60HZ |
optional configuration | honeycomb/knife strip table is optional, and the automatic feeding machine is a mesh belt table. |
co2 laser cloth cutting machine is suitable for industries: textile, clothing, industrial cloth, carpet, fabric toys, decorative cloth, automobile interior and other industries.
applicable materials for co2 laser cutting machine: clothing, textiles, leather, maple leaves, two-color films, acrylic, wood, paper, leather, etc.
