Brand -Eastlaser Model -East -ACH1500 Standards -Meeting CE standards in terms of quality and safety Warranty -the entire machine 1 year limited warranty
brand - eastlaser
model - east-ach1500
standards - meet ce standards in terms of quality and safety
warranty - 1 year limited warranty on entire machine
an air-cooled laser welder is a precision welding machine that uses a laser to melt metal and join parts together with a focused, high-energy beam. unlike water-cooled welding systems that use coolant to regulate heat dissipation, air-cooled laser welders rely on ambient air for cooling during operation. this design simplifies machine maintenance, reduces the need for additional components, and allows for a more compact setup. air-cooled laser welding machines are typically suitable for applications where portability and ease of use are critical, such as small workshops or field repairs. they are also popular in industrial uses that require precision welding, such as the automotive, aerospace, shipbuilding, and electronics industries.

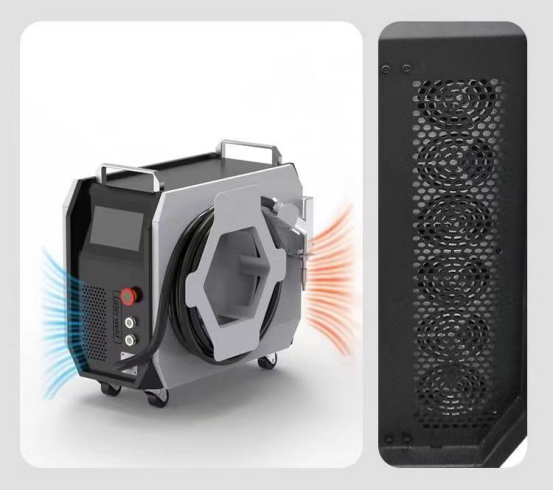

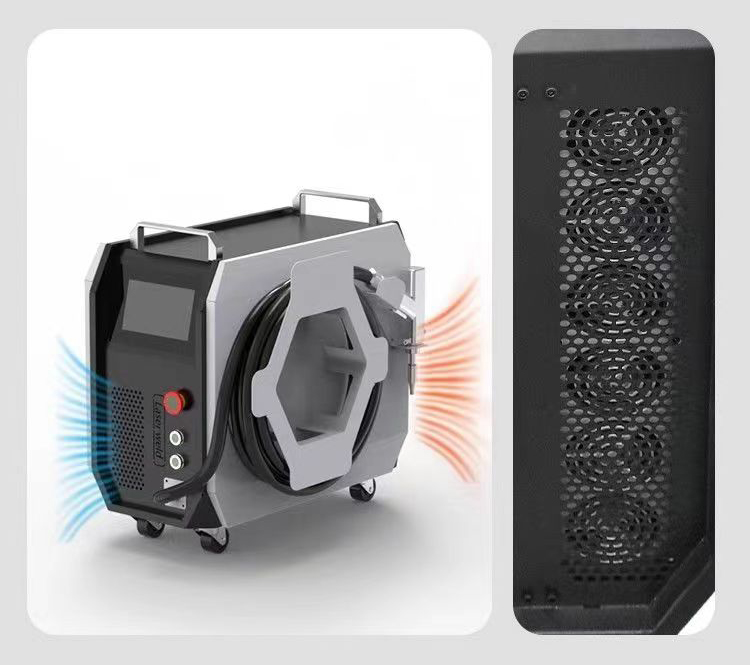

the air-cooled handheld laser welding machine adopts a compact and lightweight design, making it easy to carry.
flexible optical cable
the laser beam is transmitted to the workpiece via a fiber optic cable. fiber optic cables are flexible and easy to move, guiding the laser beam exactly where it's needed.
the laser beam is focused on a very small spot, allowing for high-precision welding. the focus can also be adjusted to different depths, allowing materials of different thicknesses to be welded.

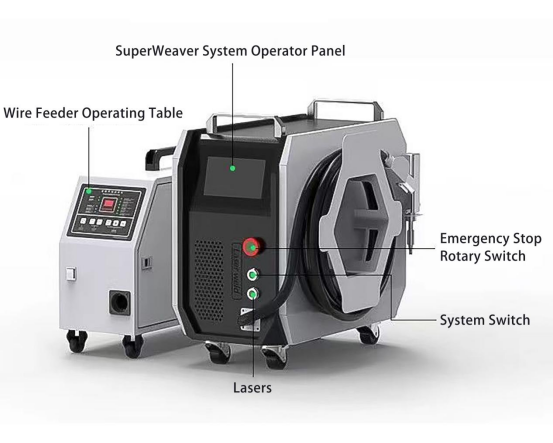

the smart control panel features a user-friendly interface for quick and easy adjustments, allowing users to manage their welding projects from a single setting.
copper nozzle designs for different welding needs provide greater flexibility to meet a variety of welding angles, materials and effects.
technical parameters
brand | EASTLASER |
model | EAST-ACH1500 |
laser power | 1500W |
cooling method | air cooling |
laser wavelength | 1080nm |
fiber length | 10 meters |
working mode | continued |
light spot adjustment range | 0〜5mm |
working environment temperature range | 15〜35℃ |
working environment humidity range | < 70% no condensation |
welding thickness recommendations | 0.5-3mm |
working voltage | 220V/ 2Phase |
gas assist | nitrogen/argon |
the best laser generator with independent intellectual property rights.
low power consumption, maintenance-free, and easy assembly make it the perfect laser source for industrial laser welding, cutting, and cleaning.
light weight and easy to use.

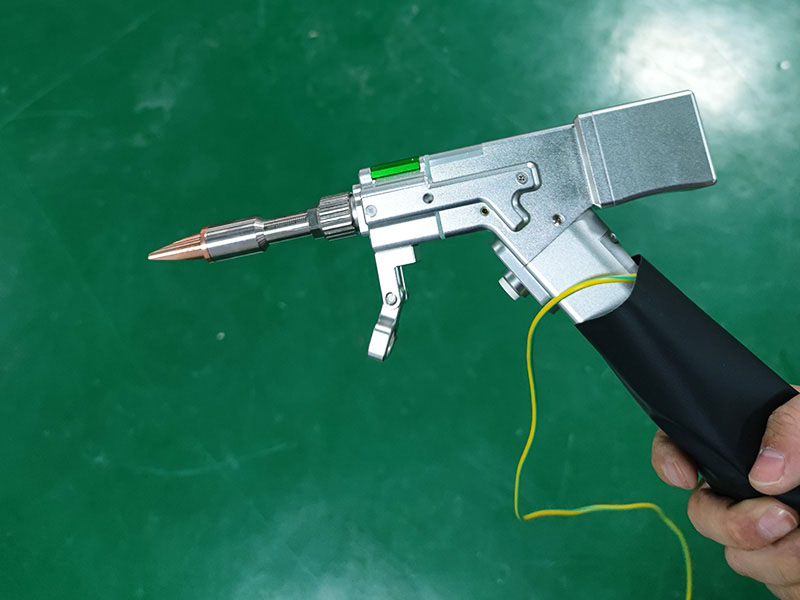

the laser welding gun adopts double protective lenses. the inner lens is designed to be pulled out, making it easy to replace. the product is stable and reliable.
humanized operation panel, hand touch control, complete functions, including welding, cleaning, cutting working modes, dedicated laser source data monitoring page, technical information, supports more than 20 languages, to meet more customer needs.

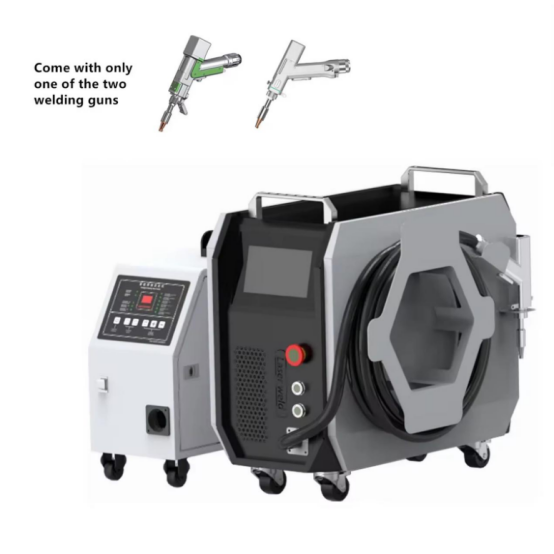

when the welding gap is large or strong welding strength is required, a wire feeding device is required.
• welding wire with specifications such as 0.8/1.0/1.2/1.6 can be used.
• the wire feeding speed is adjustable, convenient and fast.

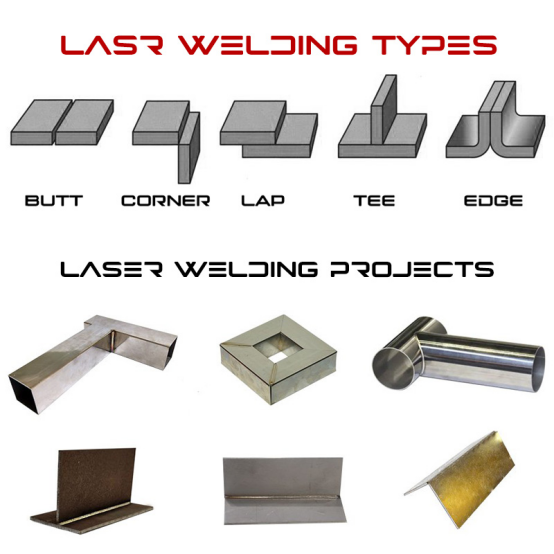

air-cooled fiber lasers can weld a variety of metals, including but not limited to stainless steel, carbon steel, aluminum, titanium, copper and nickel alloys. the final process and effectiveness depend on the specific metal properties, thickness and joint type.
air-cooled laser welding machines are used for complex and irregular welding processes in cabinets, kitchens, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home furnishings and other industries.
