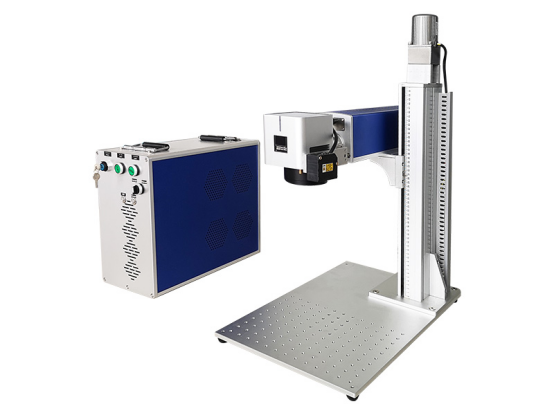

Brand -Eastlaser Model -East -CM60W Standards -Meeting CE standards in terms of quality and safety Warranty -the entire machine 1 year limited warranty
brand - eastlaser
model - east-cm60w
standards - meet ce standards in terms of quality and safety
warranty - 1 year limited warranty on entire machine

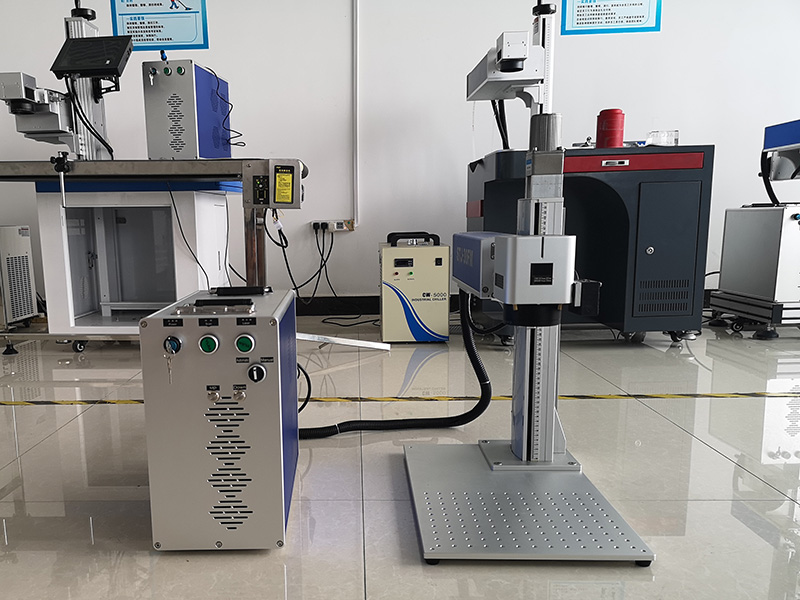

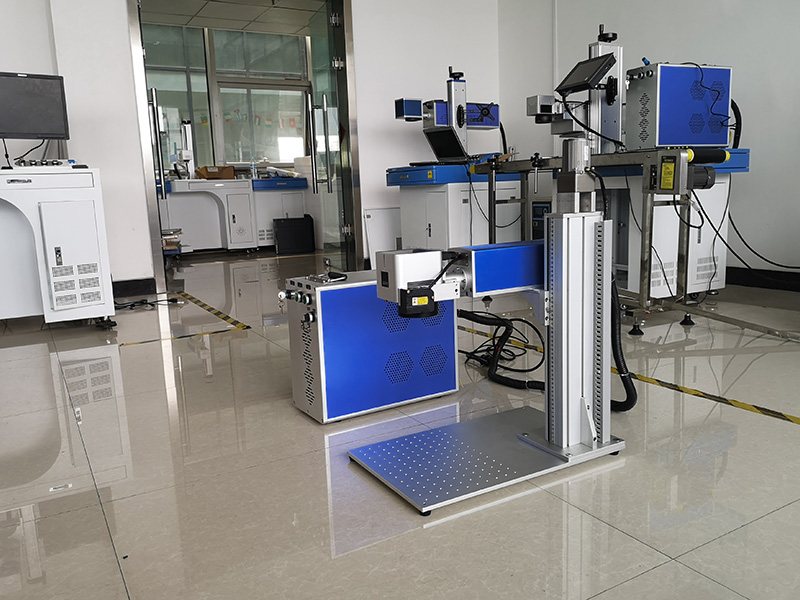

mopa laser marking machine is a fiber laser engraving system with main oscillation power amplification. mopa refers to main oscillation power amplification. mopa laser marking machine can easily mark black on alumina and aluminum alloy, as well as stainless steel, titanium alloy, chromium, etc. colorful patterns can be printed on metal materials, which is difficult to achieve with other laser equipment. the mopa laser marking machine uses a fiber laser with a direct electrically modulated semiconductor laser as the seed source (mopa) solution, which has good laser characteristics and good pulse waveform control capabilities.
the mopa laser marking machine outputs laser light from a mopa fiber laser with adjustable pulse width, and realizes the marking function through a high-speed scanning galvanometer system. the laser beam has high quality, low cost of use, and is maintenance-free for 100,000 hours. it is suitable for blackening of aluminum oxide, coloring of stainless steel, whitening of black plastic, and blackening of white plastic. the laser pattern font is environmentally friendly and complies with rohs standards.
compared with ordinary laser marking machines, the outstanding features of mopa laser marking machines are adjustable pulse width and large frequency range. generally, the pulse width of laser marking machines is fixed at about 200ns and the frequency is 1-600khz. the pulse width of the mopa marking machine can be adjusted in the range of 2-500ns, and the frequency can be adjusted in the range of 1-4000khz. this equipment adopts an integrated frame structure design for the entire structure. it runs very stably without any noise during use. the operator can also know the specific advantages during operation, so that it can be used more rationally.
mopa laser marking machine is suitable for mobile phone back covers, ipads, blackened aluminum, mobile phone buttons, plastic transparent buttons, electronic components, integrated circuits (ics), electrical appliances, communication products, sanitary ware, tool accessories, knives, glasses watches, jewelry, auto parts, luggage buckles, cookware, stainless steel products and many other industries.
mopa laser marking machine can achieve color marking by adjusting the laser beam to change the color of the material surface. under the action of laser, the metal surface produces laser thermal effect. it can be seen from the laser thermal effect that the laser energy density is proportional to the thickness of the film layer. as the laser energy increases, the color of the metal surface changes regularly: yellow, red, blue, green until green gradually darkens. by controlling the laser energy density, the desired color can be produced on stainless steel, chromium, titanium and other metal materials.
1.jpt brand 60w mopa fiber laser source, the fiber laser has a service life of more than 100,000 hours without maintenance.
2. the laser source is air-cooled, small in size and low in power consumption.
3. electric z-axis system, which can easily mark and engrave different workpieces.
4. the photoelectric conversion efficiency of this machine is higher, and the photoelectric conversion efficiency is as high as more than 30%.
5. the high-speed galvanometer scanner ensures beam stability and excellent performance.
6. red light preview to make the mark visible before marking.
7. proprietary control software is compatible with software output such as autocad, coreldraw, and photoshop to realize automatic editing and correction of text, symbols, graphics, images, barcodes, and qr codes.
model | EAST-CM60W |
laser light source | mopa fiber laser |
laser power | 60W |
laser wavelength | 1064nm |
optical cable length | 3m |
pulse width | 2-500 nanoseconds |
repeat frequency range | 14000kHz |
M2 | <1.8 |
maximum single pulse energy | 1.5 megajoules |
output power stability | <5% |
output beam diameter | 7±0.5mm |
power range | 1％-100％ |
anti-reflective protection | have |
marking range | 110*110mm/175*175mm/200*200mm/300*300mm |
minimum line width | 0.01mm |
minimum number of characters | 0.1mm |
marking speed | ≤7000mm/s |
carve depth | depends on material |
repeat accuracy | ±0.001mm |
markup format | graphics, text, barcodes, qr codes, automatic dates, batch numbers, serial numbers, etc. |
support graphic formats | Ai、plt、dxf、dst、svg、nc、bmp、jpg、jpeg、gif、tga、png、tiff、tif |
working voltage | 220v±10%/50hz or 110v±10%/60hz or customized |
unit power | <0.5kw |
working environment | clean and dust-free or less dusty |
working conditions humidity | 5%-75%, 0-40 degrees, no condensation |
laser life | > 100000 hours |
net weight | 65kg |
packing size | 770 *480 * 780mm |
camera system | optional |
auto focus function | have |

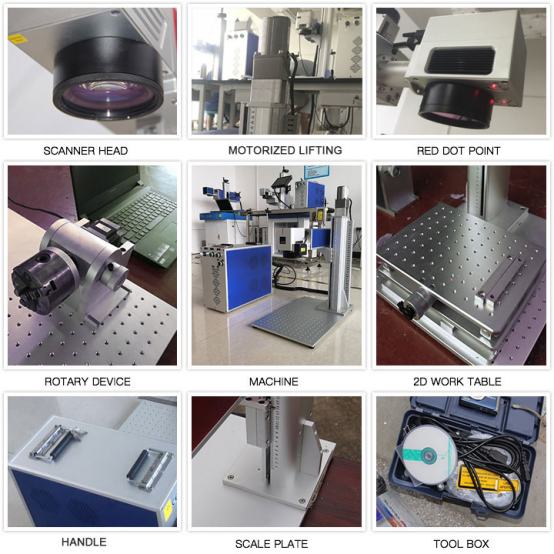

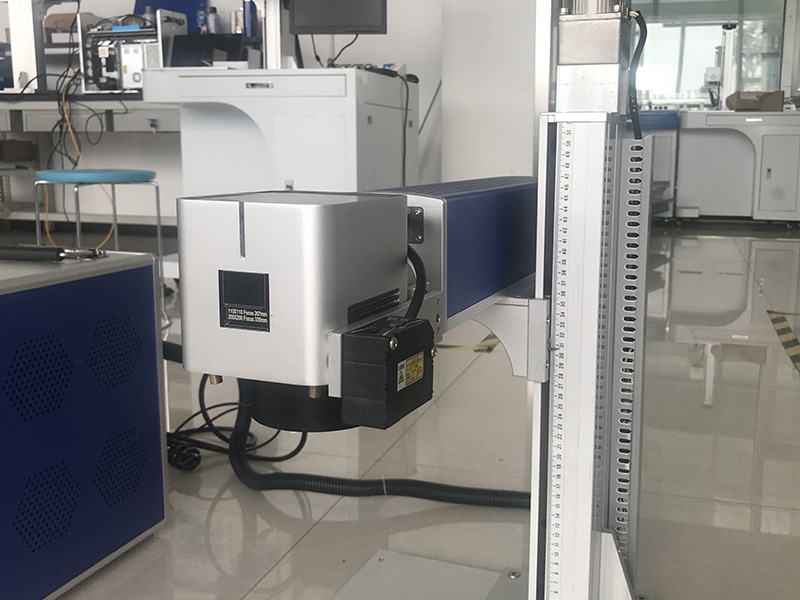

mopa laser engraving head

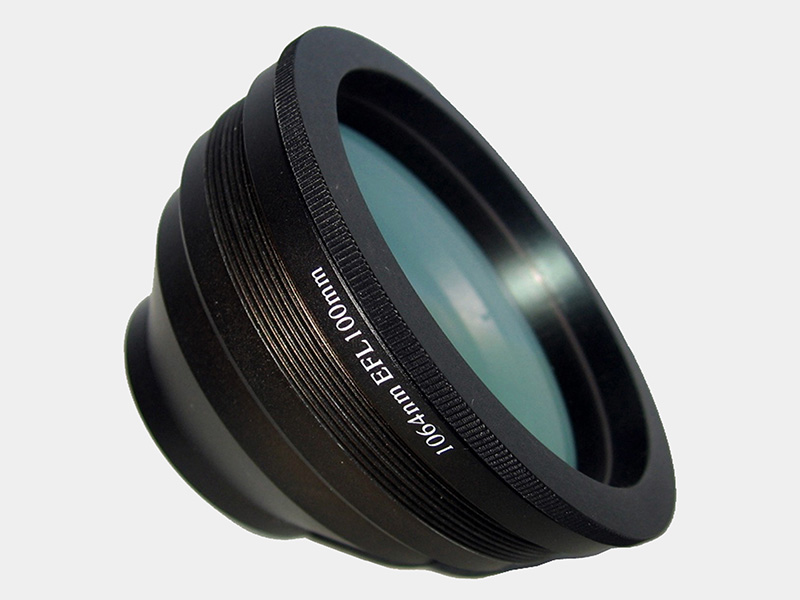

mopa laser engraving airport mirror

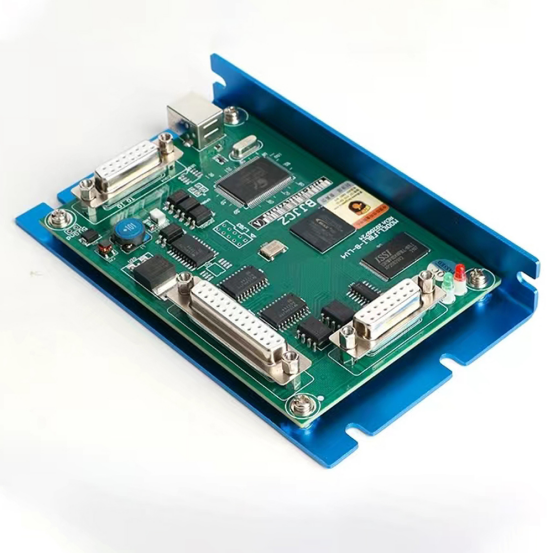

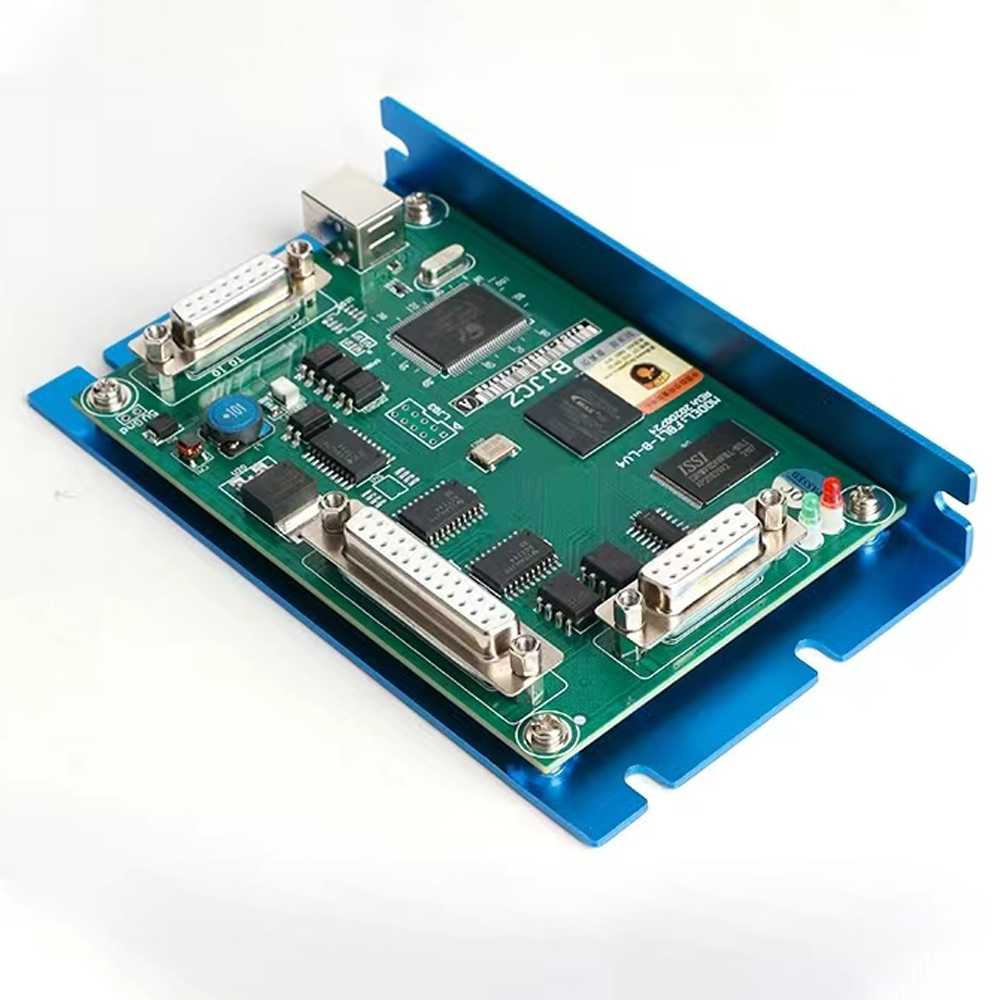

mopa laser marking machine control card
1. aluminum sheet peeling surface: no deformation, fine marking.
2. aluminum plate is marked in black.
3. metal depth marking.
4. stainless steel color marking: mark different colors by setting parameters.
5. pcb, abs, yellow-free plastic.
6. translucent paint keyboard: it is easy to make the keyboard translucent.
7. electronics, semiconductor components, ito precision processing: the pulse can be adjusted to obtain the best light spot and balance the power.
8. use titanium, aluminum, stainless steel, gold and silver to diy custom metal credit cards.
