Brand -Eastlaser Model -East -AW2000 Standards -Meeting CE standards in terms of quality and safety Warranty -the entire machine 1 year limited warranty
brand - eastlaser
model - east-aw2000
standards - meet ce standards in terms of quality and safety
warranty - 1 year limited warranty on entire machine

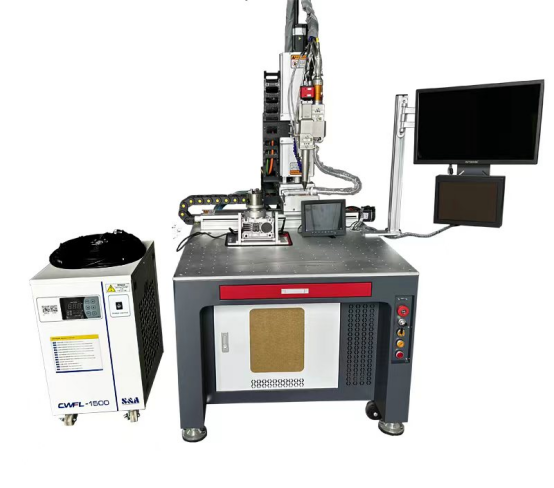

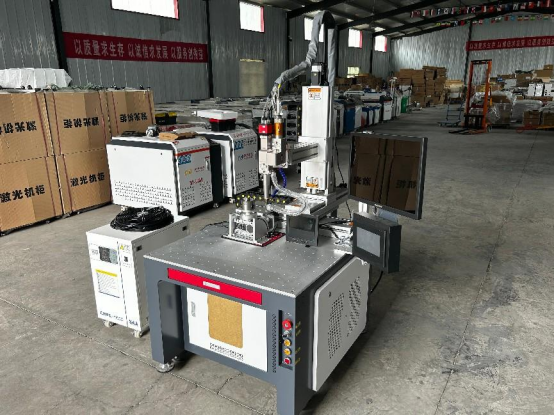

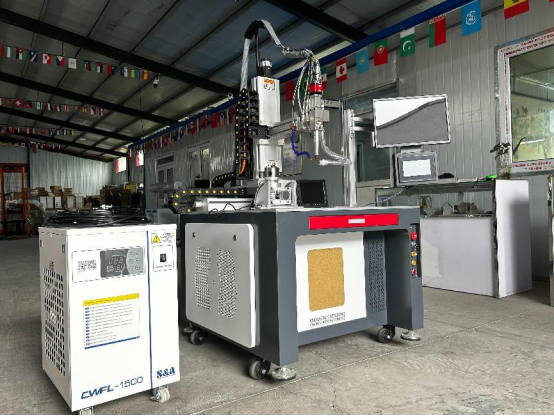

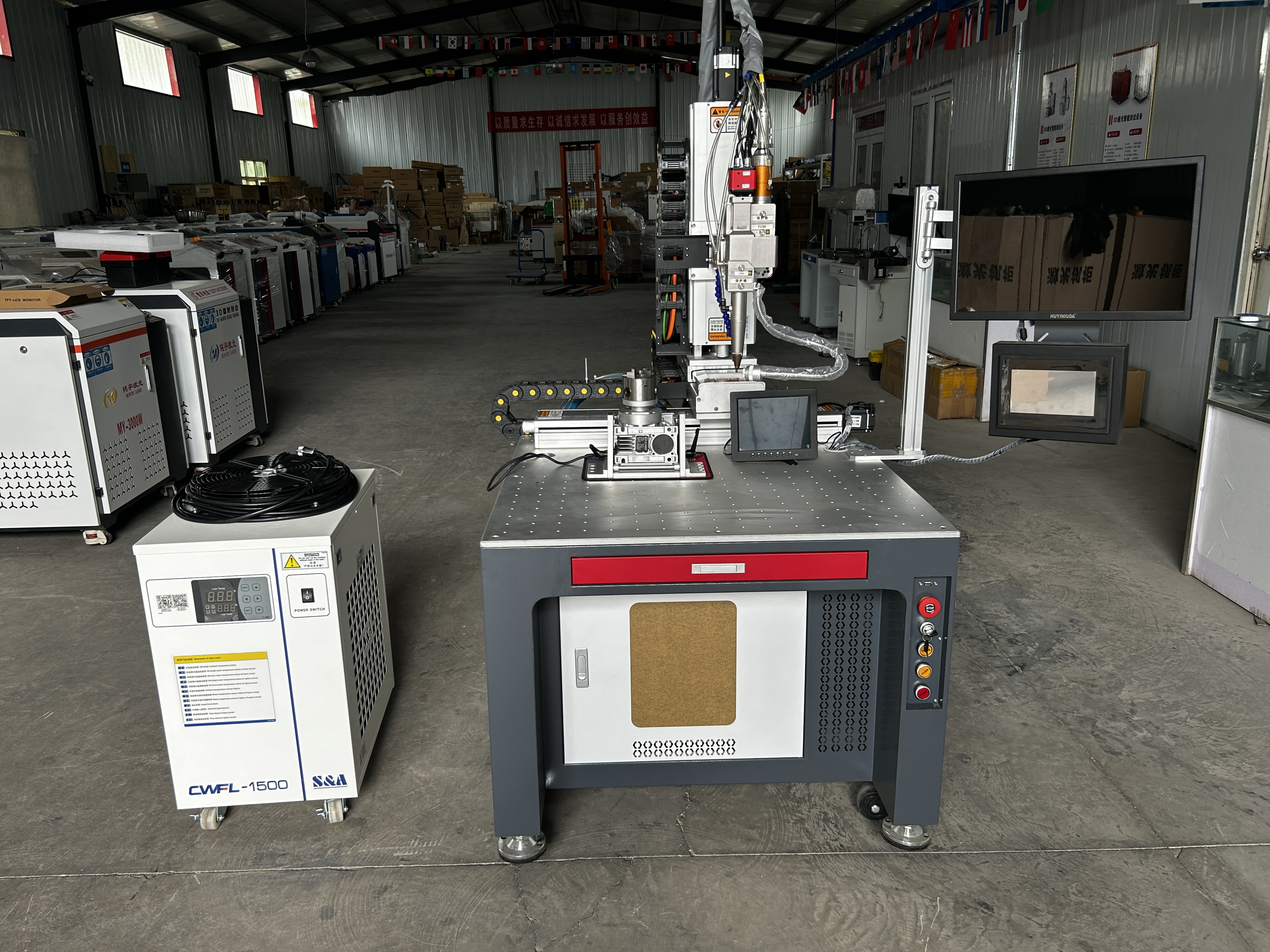

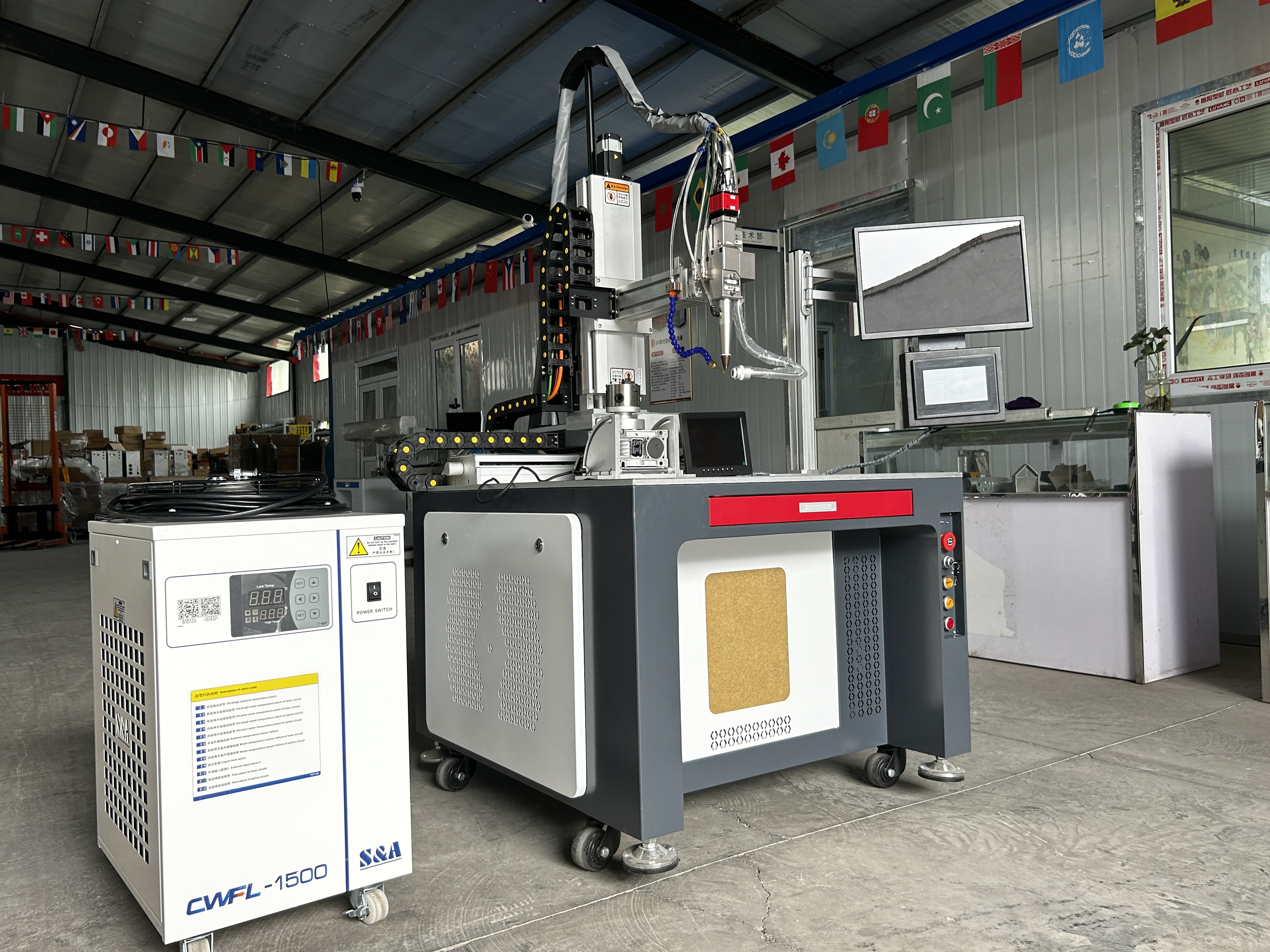

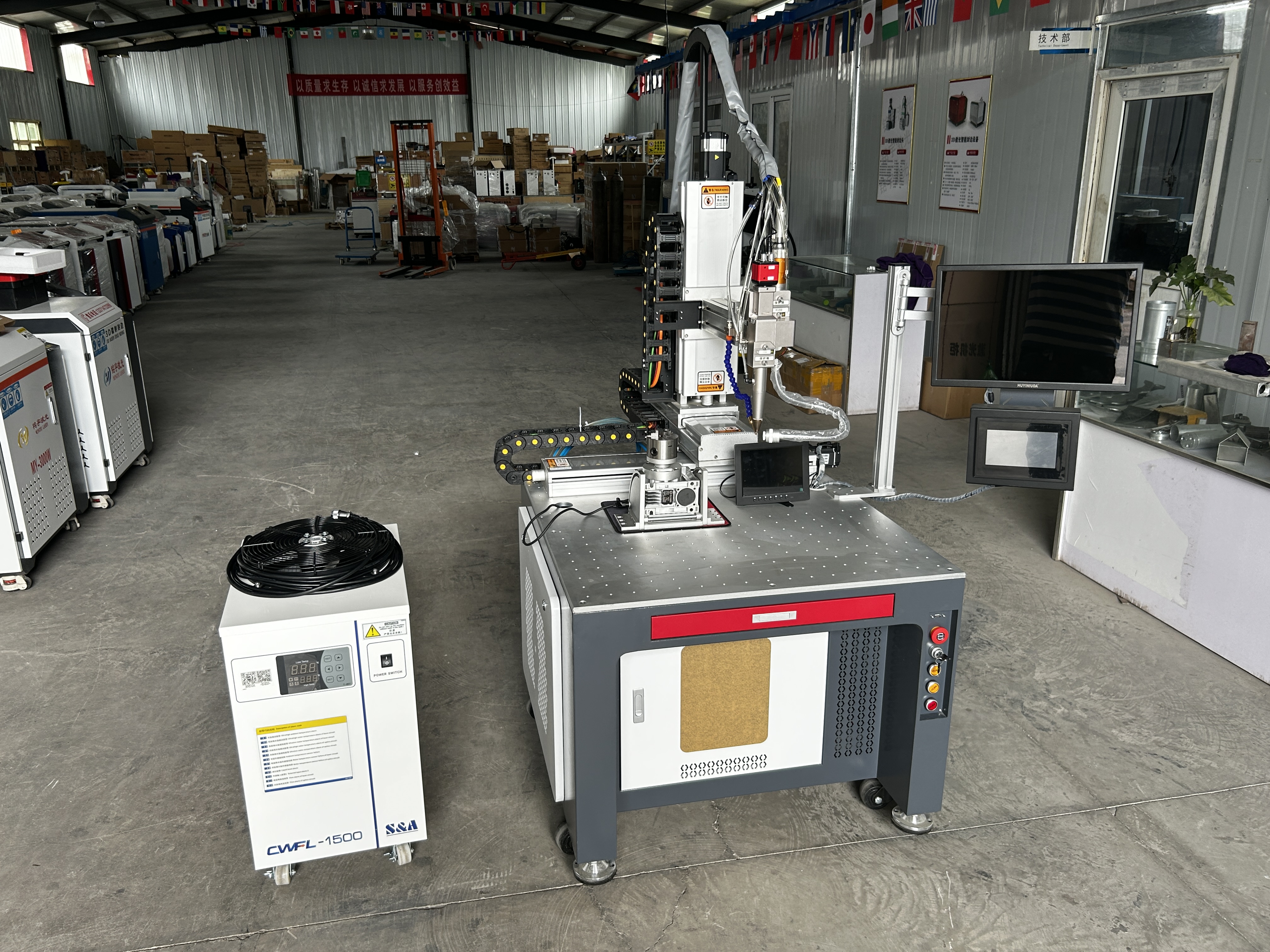

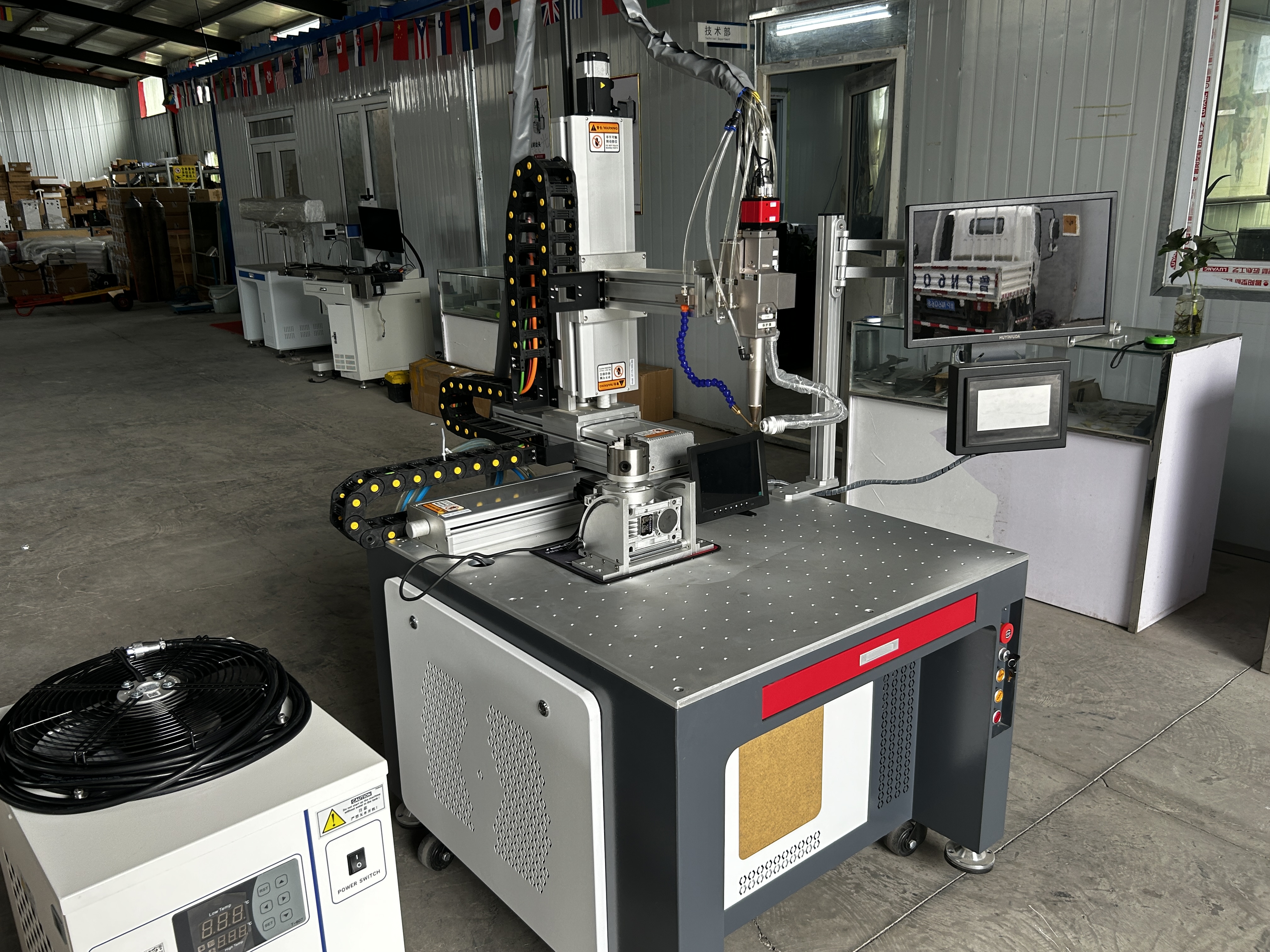

the automatic laser welding machine is a computer numerical control laser welding machine that can perform automatic or semi-automatic butt welding, sealing welding, spot welding, lap welding, and realize complex plane straight line, arc and arbitrary trajectory welding.
cnc laser welding machine is an automated high-precision fiber laser beam welding machine used to weld mobile phone batteries, jewelry, electronic components, sensors, watches, precision machinery, communications, handicrafts, high-end cabinets, elevator accessories, stainless steel door handles, high-end furniture, stainless steel flasks and other metal pieces are connected together.
the fully automatic cnc laser welding machine can easily complete the welding of carbon steel, alloy steel, stainless steel and other different steel types, as well as stainless steel-nickel alloy, nickel electrode-cold forged steel, bimetal strips with different nickel contents, titanium, nickel, tin , copper, aluminum, chromium, niobium, gold, silver and other metals and their alloys. in addition, it can also handle copper-nickel, nickel-titanium, copper-titanium, titanium-molybdenum, brass-copper, carbon steel-copper welding between dissimilar metals.
the fully automatic fiber laser welding machine has the characteristics and advantages of simple operation, beautiful welds, fast welding speed, and no consumables. it can perfectly replace traditional argon arc welding and electric welding.
⇲ perfect replacement for argon welding and electric welding, used for welding stainless steel, carbon steel, aluminum and other thin metals.
⇲ the automated laser welding machine can work continuously and stably 24 hours a day to meet the needs of industrial mass production and manufacturing.
⇲ light weight, small size, ergonomic design and comfortable operation.
⇲ pc computer control, special software assistance, simple and easy to learn, can make the workpiece move in a plane trajectory, welding any point, straight line, circle, square or any plane figure composed of straight line and arc.
⇲ the internal structure of the welding head is completely sealed to prevent the optical part from being contaminated by dust.
⇲ the laser beam has excellent quality, fast welding speed, and the welds are strong and beautiful, providing users with efficient welding solutions.
⇲ high electro-optical conversion rate, low energy consumption, no consumables, small size, long-term use can save users a lot of processing costs.
⇲ ccd liquid crystal monitoring and observation system, the product positioning and welding effect can be clearly observed according to the red light indication.
⇲ the welding seams are beautiful, fast, no welding marks, no discoloration, and no need for post-polishing.
⇲ optical fiber output, can be used with robots or assembly lines.
⇲ we have strong ability to customize special models for customers and can tailor them according to customer needs.
⇲ the welding seam is thin, the welding depth is large, the taper is small, and the precision is high; the appearance is smooth, flat and beautiful.
⇲ multi-language display, supports international applications.
⇲ the swing welding head has strong advantages in welding high-reflection materials, has a wide range of applications and is very cost-effective.
⇲ the welding head adopts motor-driven x and y-axis galvanometers, which have a variety of swing modes. it can set processing parameters such as irregular shapes and large solder joints, which can significantly improve the welding quality.
⇲ the protective mirror adopts a drawer structure, which is easy to replace, and can be equipped with a variety of qbh connector laser sources.
⇲ the welding head is equipped with an air curtain assembly to reduce the pollution of dust and splash residue.
⇲ strong anti-interference, equipped with 1000w-2000w laser source.
model | EAST-AW1500 | EAST-AW2000 | EAST-AW3000 |
laser power | 1500W | 2000W | 3000W |
welding depth | stainless steel≤3mm | stainless steel≤4mm | stainless steel≤6mm |
aluminum≤3mm | aluminum≤4mm | aluminum≤6mm | |
laser wavelength | 1080±10nm | ||
fiber length | 10 m | ||
workbench | 500 *300 * 300mm | ||
pulse width | continued | ||
collimation | ccd series | ||
drive system | ball screw + servo system | ||
cooling chiller | industrial chiller | ||
working voltage | 220v/2p for 1500w, 2000w and 380v/3p for 3000w | ||

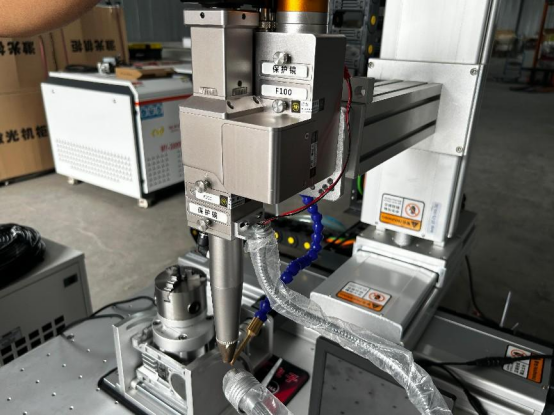

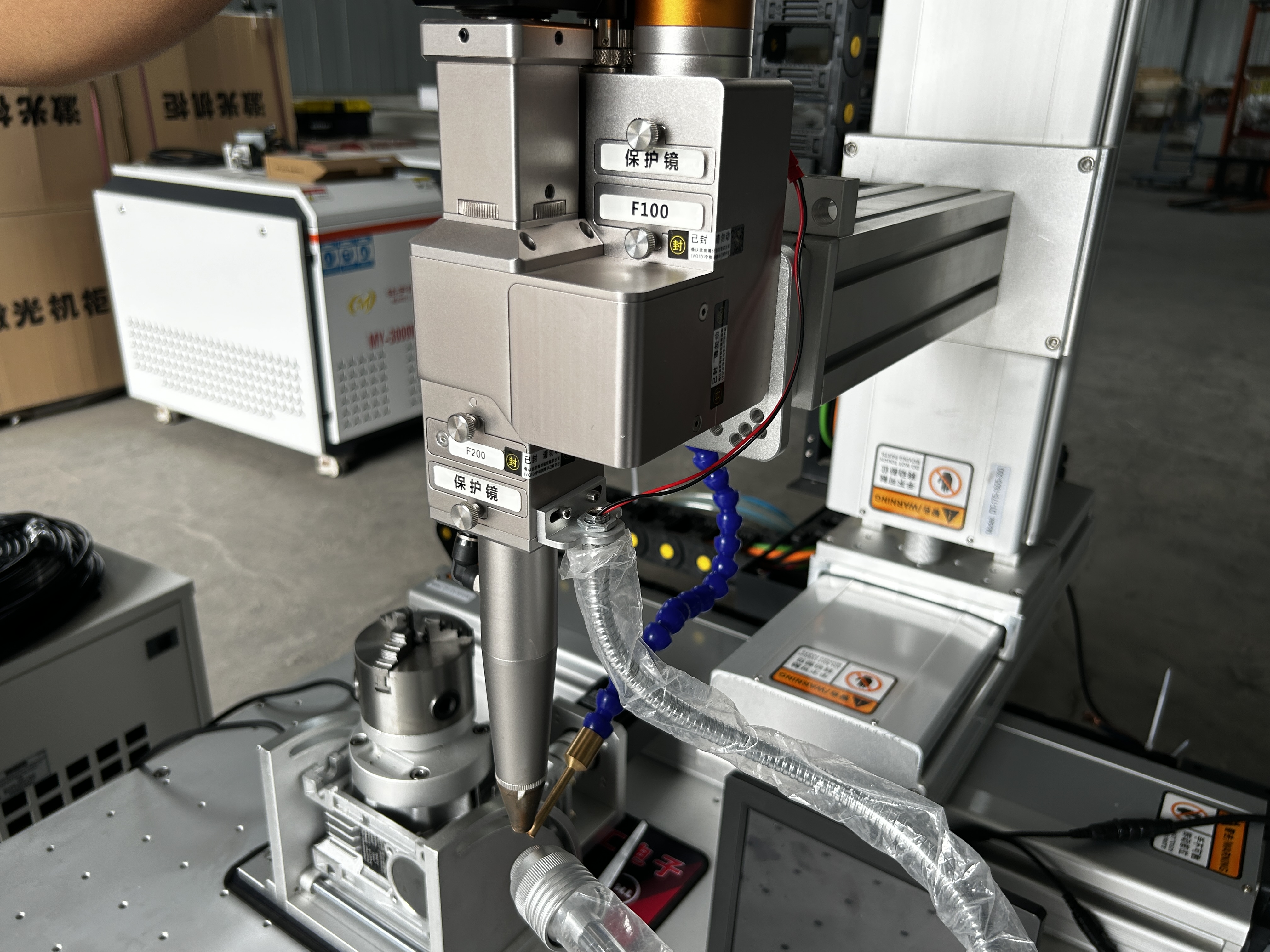

oscillating laser welding head
the welds are beautiful, fast, no weld marks, no discoloration, and no need for post-polishing.

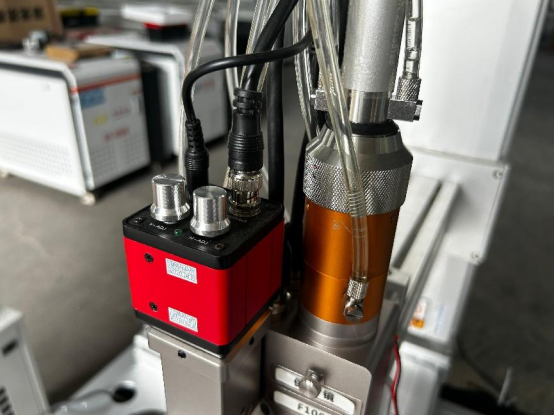

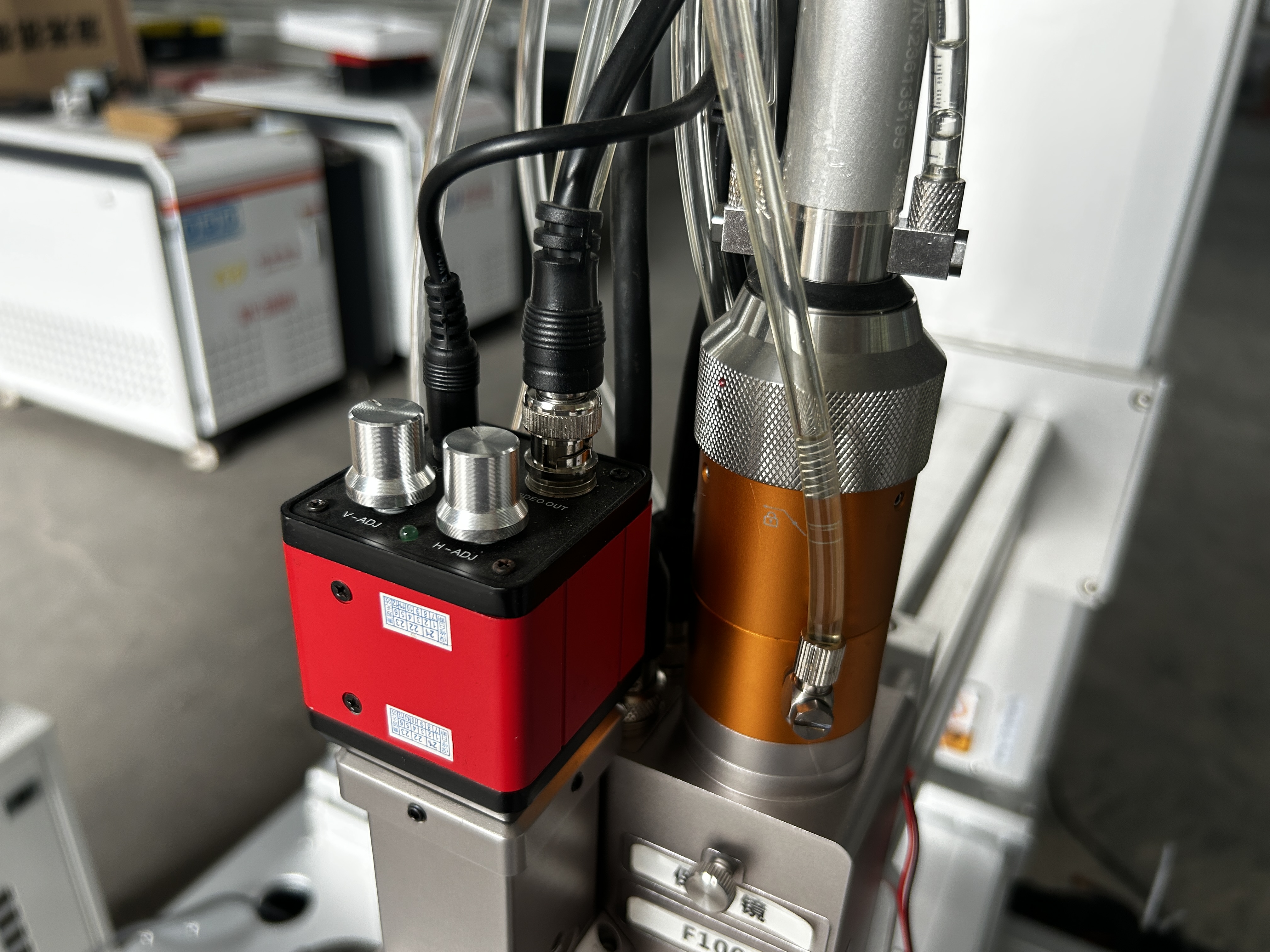

ccd camera
the ccd camera is paired with a blue light to make the welded parts visible.

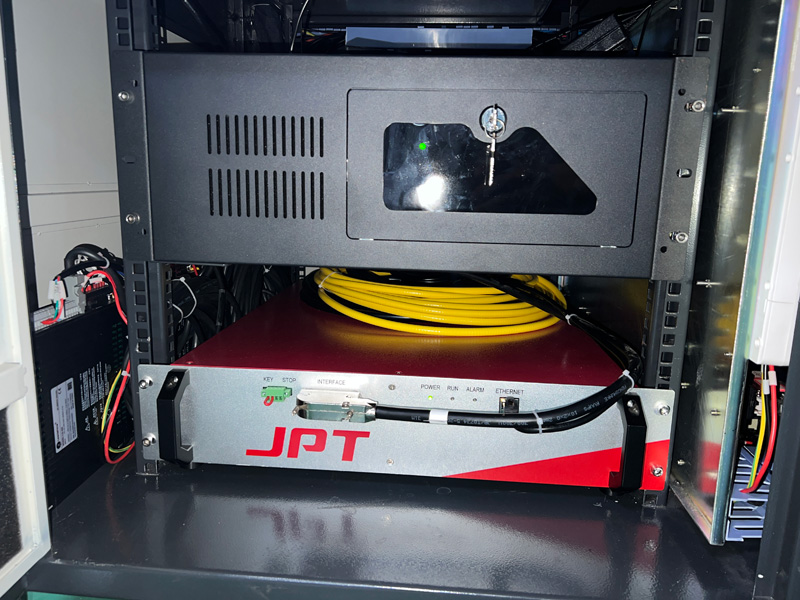

jpt fiber laser
best brand laser source.
long service life, low failure rate, anti-reflection.
the interactive control system enables larger light spots and better weld formation.

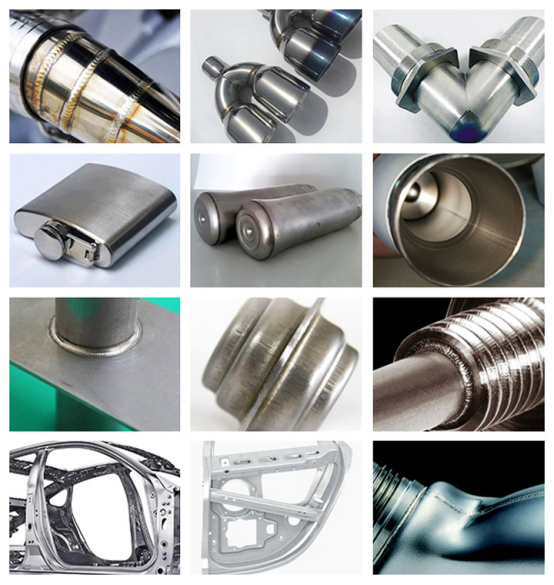

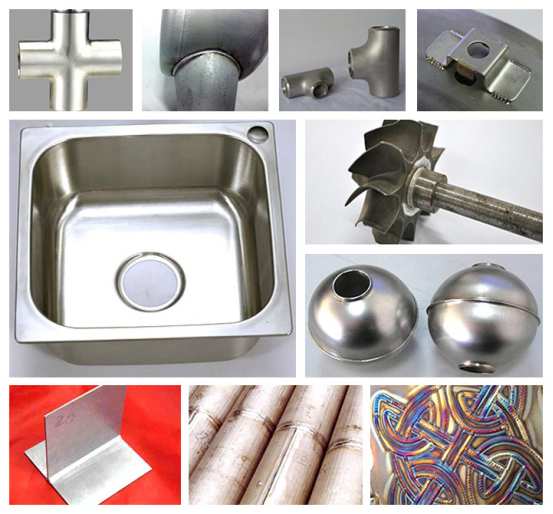

cnc automatic laser welding machines are mostly used in the automobile manufacturing industry, lithium battery industry, pillow head exchangers, machinery manufacturing industry, furniture industry, sheet metal processing industry, power batteries, electronic communications industry, metal connectors, kitchen and bathroom electrical equipment, mobile phone accessories (middle plates, nuts), hardware, structural parts, automotive parts, medical equipment, and more precision parts. the automatic fiber laser welding machine is suitable for continuous welding of stainless steel, carbon steel, aluminum, copper, titanium and other metals.
