Brand -Eastlaser Model -East -FT20W Standards -Meeting CE standards in terms of quality and safety Warranty -the entire machine 1 year limited warranty
brand - eastlaser
model - east-ft20w
standards - meet ce standards in terms of quality and safety
warranty - 1 year limited warranty on entire machine

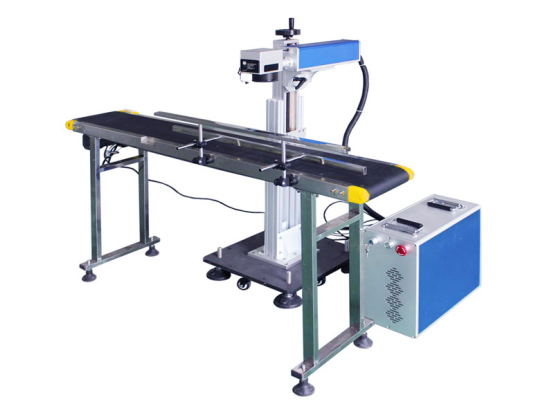

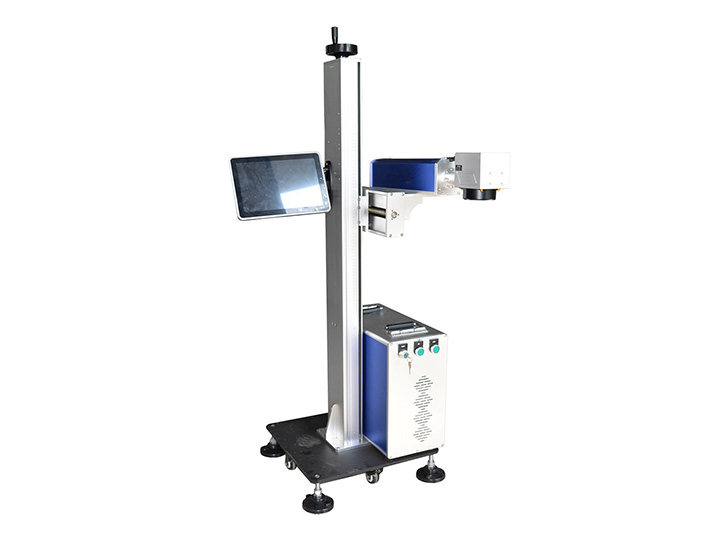

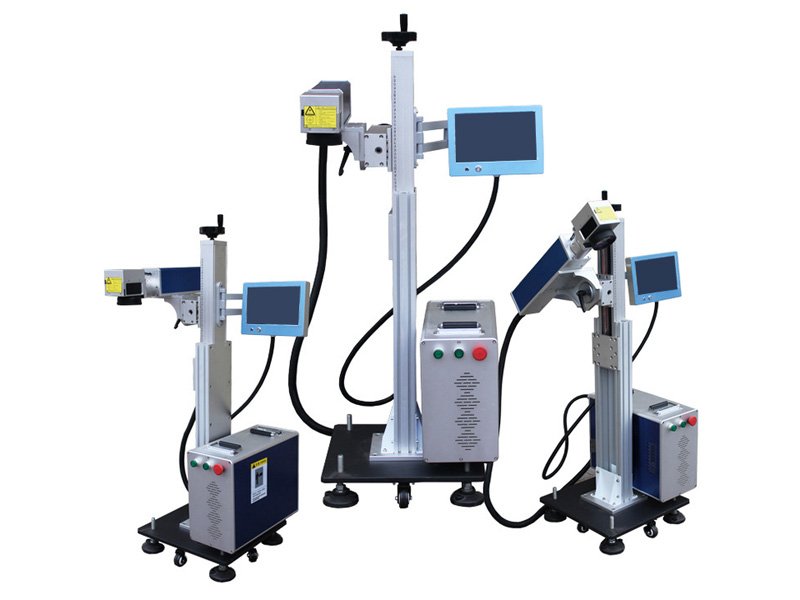

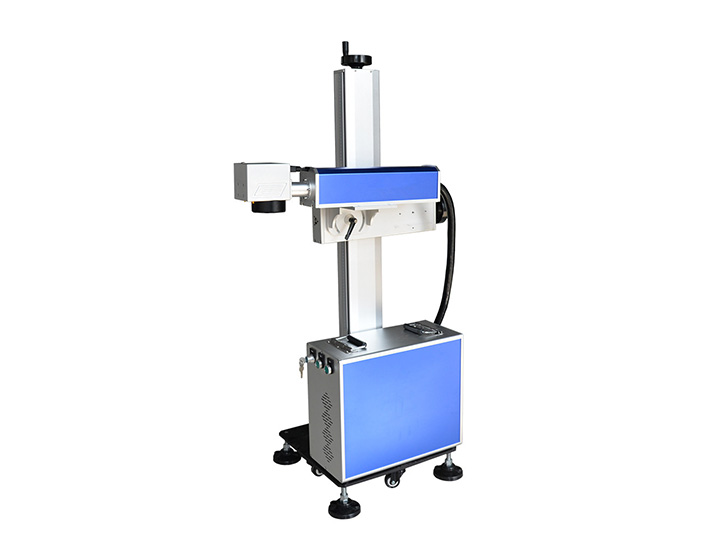

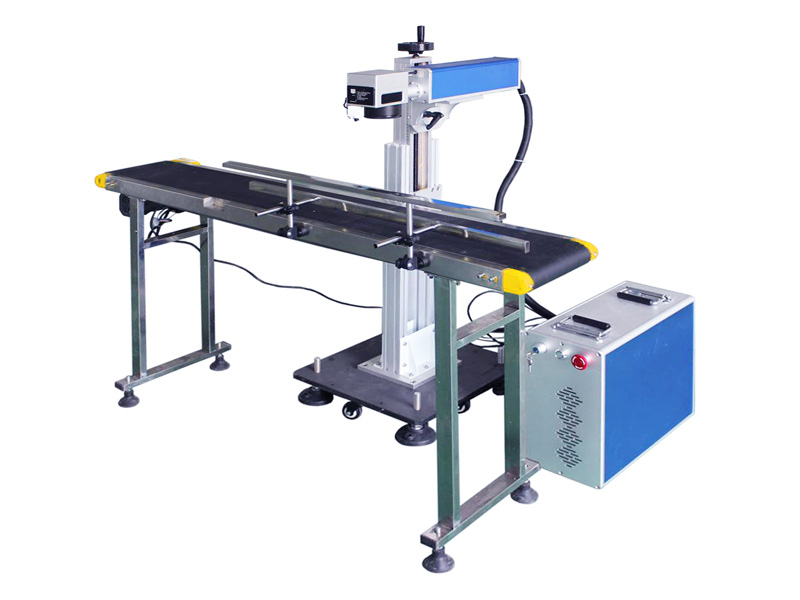

the online flying fiber laser marking machine is a laser engraving system for marking on the fly (motf) in industrial mass production in the form of an assembly line. it adopts a rotatable laser head and can achieve marking in multiple directions such as downward and forward. it can be installed on online flight marking is realized on various production lines.
how does the online flying fiber laser marking machine work?
the online flying fiber laser marking machine uses a fiber laser generator, connected to a photoelectric probe, and automatically triggered to complete the automatic flight marking function of the assembly line. text and graphics can be marked. the flying laser marking system has powerful text typesetting and graphics processing functions. the flying laser marking system can automatically generate batch numbers and serial numbers. the plug-in intelligent control interface can be flexibly connected to various automation equipment and sensors, and the software functions can be flexibly modified according to specific conditions. in response to the variable speed characteristics of the assembly line, optional speed card marking settings are provided to ensure the coordination of symbol functions and speed.
flying dynamic marking has no working surface and adopts a more flexible method. it can mark the appearance of the product 360 degrees without restrictions. it can also be assembled on the assembly line and completed with orbital rolling to complete product marking. in recent years, it has attracted widespread attention. application. choosing laser marking is not only environmentally friendly, but also anti-counterfeiting, improving product quality from the side. the main beam height and front and rear position of the flying laser marking machine can be easily adjusted. the laser head can be rotated 180 degrees and has a red light focus indicator device.
the utility model discloses a flying fiber laser marking machine, which includes a column, a marking line, a laser printing control system, a laser cavity, a base, and an electric control box. the column is vertically set above the base, and the control box and the rear panel of the column are screwed connection, the traversing tooling is set horizontally at the vertical position of the upright column and the center column and fixed with screws. the traversing tooling support frame is set transversely on the laser cavity. the adjustment device and laser printing control system are located on the side columns. the marking line and the laser cavity are connected by a connecting frame. connected and located at one end of the laser cavity. the optical fiber flying laser marking machine provided by the utility model has a compact structure, a simple structure, convenient manufacturing and convenient placement, which greatly reduces the space occupied by the equipment and is easy to move. it has a low failure rate, is safe and reliable, is easy to operate, and is easy to implement multiple styles of marking solutions. the integrated touch screen makes the operation more user-friendly and makes it easier for users to use.
1. wide range of applications
it is suitable for metal, plastic, leather, alloy and other materials.
it is suitable for users who have high requirements for mass production and marking accuracy, such as food printing, pharmaceutical printing, beverage printing, cigarette coding, alcohol industry, mineral water, daily cosmetics, wires and cables and various production lines.
2. permanent marking
laser marking is a permanent mark. it won't fade, bleed, or become illegible over time like traditional markings (including inkjet, hand-engraved, dot-punch marking).
3. long service life
fiber lasers have a service life of over 100,000 hours and require little maintenance during this time.
4. easy to operate
supports almost all windows-based software, such as coreldraw, autocad, and photoshop.
5. high precision
0.0025mm repositioning accuracy. minimum line width 0.01mm.
6. non-contact process
there is no mechanical compression or mechanical stress on the material. the laser beam does not move the workpiece.
7. portable
integrated design, small size, easy installation, small footprint, easy to move and transport, about the same size as a computer chassis.
8. high-speed scanning galvanometer
provides high-speed and precise marking and engraving.
9. a variety of lenses suitable for different marking sizes
F=100mm/160mm/254mm/300mm/430mm.
10. red dot pointer
indicates laser beam position.

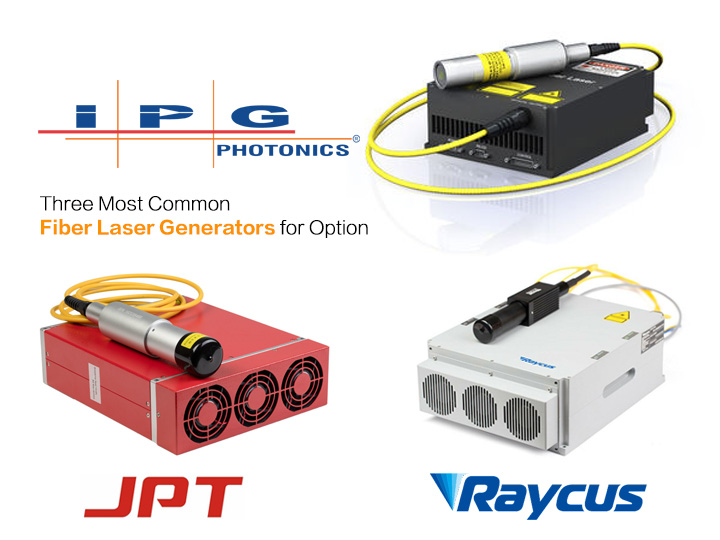

11. different brands of fiber laser sources
ipg/raiko/jpt 20w/30w/50w/100w optional fiber laser source.
12. powerful software
it can be used in many applications such as serial number marking, data marking, text/logo/graphic marking, barcode, qr code.
13. support files in multiple formats
plt, pcx, ai, dxf, bmp, jpg, etc.
various add-on devices are suitable for different applications, such as rotary marking on cylindrical items, automatic marking on production lines, and filling lines.

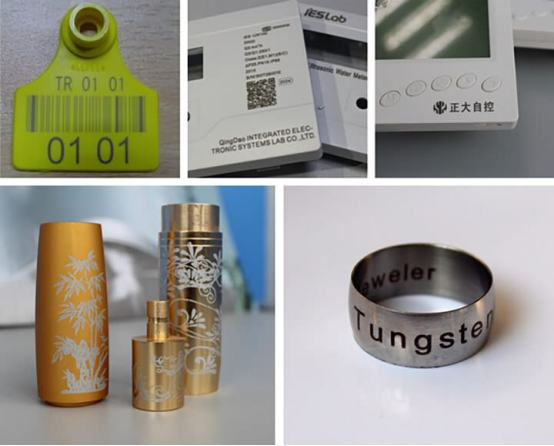

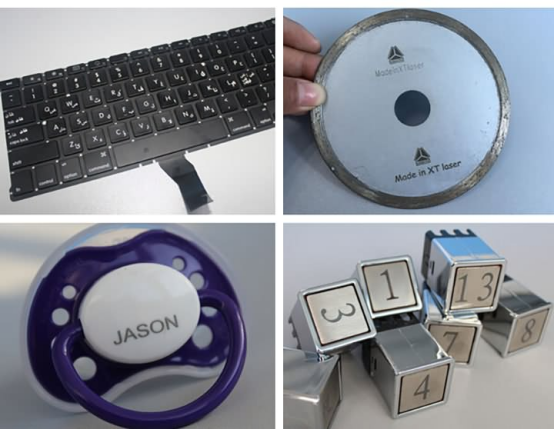

applicable industries
1. mechanical parts: bearings, gears, standard parts, motors.
2. instruments: panels, nameplates, precision equipment.
3. hardware tools: cutters, tools, measuring tools, cutting tools.
4. daily necessities: handicrafts, zippers, keychains, sanitary ware.
5. auto parts: pistons and rings, gears, shafts, bearings, clutches, lights.
6. electronic components: resistors, capacitors, chips, printed circuit boards, computer keyboards, wire markers.
applicable materials
metals (including rare metals), engineering plastics, electroplating materials, coating materials, spray materials, plastics, rubber, epoxy resins, ceramics, plastics, abs, gold, silver, brass, steel, titanium, copper and other materials.
model | EAST-FT20W |
laser power | 20W |
laser source | raycus fiber laser |
mark area | 110 * 110mm |
maximum marking speed | 7000mm/second |
minimum line width | 0.01mm |
minimum mark character | 0.2mm |
cooling method | air cooling |
power supply | 220V / 50Hz |
relocation accuracy | 0.0025mm |
laser pointer | red dot pointer |
raycus fiber laser is a high-tech enterprise from wuhan, china, specializing in the research, development, production and sales of fiber lasers. it is an influential fiber laser brand and service provider in the world.
the main products of raycus fiber laser include pulsed fiber laser generators from 10w to 2,000w; continuous fiber laser generators from 10w to 30,000w; quasi-continuous fiber laser generators from 75w to 450w; direct semiconductor lasers from 80w to 8,000w. products are widely used in laser manufacturing fields such as marking, cutting, welding, cladding, cleaning, and additive manufacturing; the main ultrafast laser products include 10w to 20w nanosecond lasers, 2w to 100w infrared picosecond lasers, and 5w to 50w green lasers. second laser, 5w to 30w uv picosecond laser, 1w to 20w femtosecond lasers are widely used in laser manufacturing such as: display and panel glass cutting, automotive glass cutting, fpc cover film cutting, 5g lcp cutting, oled flexible display material cutting, led wafer cutting, semiconductor chip cutting and other applications.
usually wooden boxes are used to pack the machines.
1. payment method: t/t, 30% deposit; 70% balance paid before delivery.
2. delivery time: the machine will be shipped within 3-5 working days after payment.
3. minimum order quantity: 1 set.
1. we provide lifelong technical support by phone and email.
2. if you have any questions, our technicians can provide you with remote guidance online.
3. we can record videos of operating the laser machine.
4. our factory provides free training courses.
5. engineers can repair machinery overseas.
6. the machine will be adjusted before delivery and comes with operating disk/cd.
