Brand -Eastlaser Model -East -XY60W Standards -Meeting CE standards in terms of quality and safety Warranty -the entire machine 1 year limited warranty
brand - eastlaser
model - east-xy60w
standards - meet ce standards in terms of quality and safety
warranty - 1 year limited warranty on entire machine
the best budget fiber laser engraving machine in 2025 is controlled by a computer. the laser marking software inputs the marking content. at the same time, it irradiates the surface of the material to be processed with a laser beam with a high energy density. the surface of the material absorbs the laser energy and generates a thermal excitation process in the irradiated area. the temperature of the material surface (or coating) increases, causing melting, ablation, evaporation and other phenomena, thereby forming a permanent mark with a certain depth on the surface of the project.
compared with traditional engraving technology, the most affordable fiber laser engraving machine not only loses less material, but also has better engraving results. if you want to get more beautiful effects and more efficient engraving, you should choose different types of lasers to compare in order to find a laser engraving solution suitable for your fine engraving plan.
model | EAST-XY60W |
output power | 60W |
laser wavelength | 1064nm |
optical cable length | 3m |
pulse width | 2-500 nanoseconds |
repeat frequency range | 1 4000kHz |
M2 | <1.5 |
maximum single pulse energy | 1.5 megajoules |
output power stability | <5% |
output beam diameter | 7±0.5mm |
power range | 1％-100％ |
anti-reflective protection | have |
marking range | 110*110mm to 600*400mm |
minimum line width | 0.01mm |
minimum number of characters | 0.1mm |
marking speed | ≤7000mm/s |
carve depth | depends on material |
repeat accuracy | ±0.001mm |
markup format | graphics, text, barcodes, qr codes, automatic dates, batch numbers, serial numbers, etc. |
support graphic formats | Ai、plt、dxf、dst、svg、nc、bmp、jpg、jpeg、gif、tga、png、tiff、tif |
working voltage | 220v±10%/50hz or 110v±10%/60hz or customized |
unit power | <0.5kw |
working environment | clean and dust-free or less dusty |
working conditions humidity | 5%-75%, 0-40 degrees, no condensation |
laser life | > 100000 hours |
net weight | 65kg |
packing size | 770 *480 * 780mm |
camera system | optional |
autofocus system | optional |
mobile xy workbench | optional |

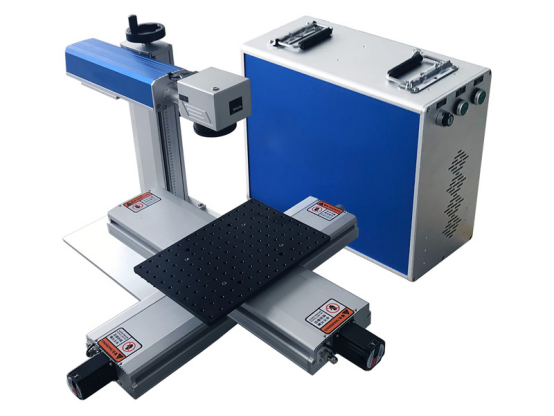

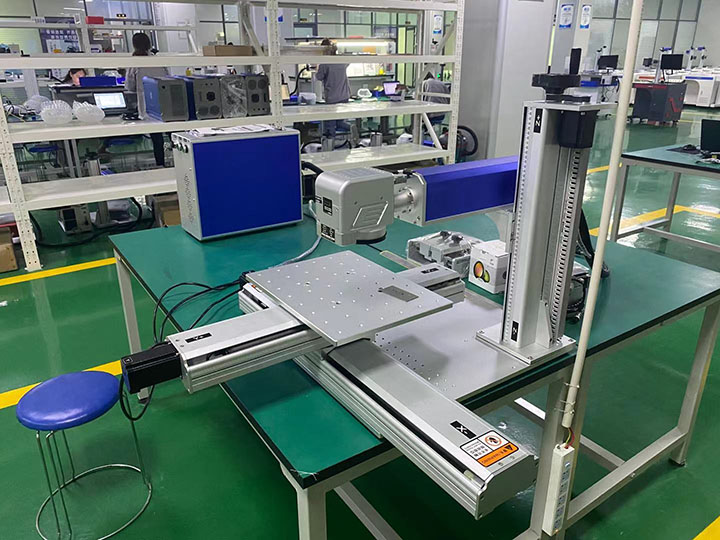

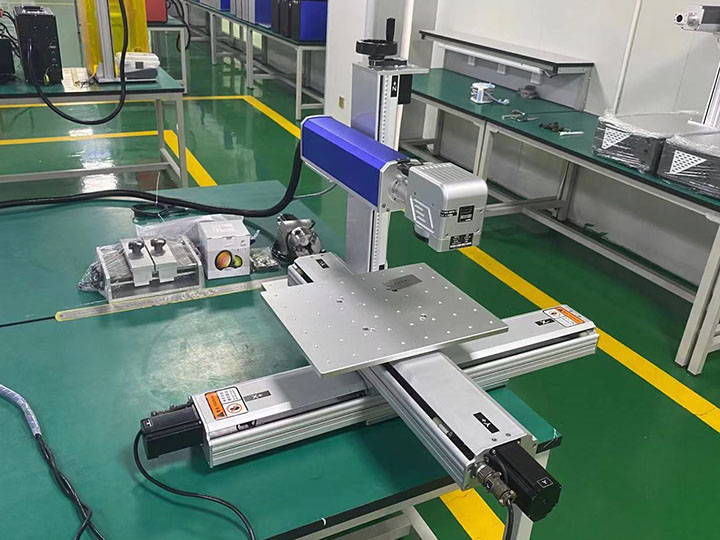

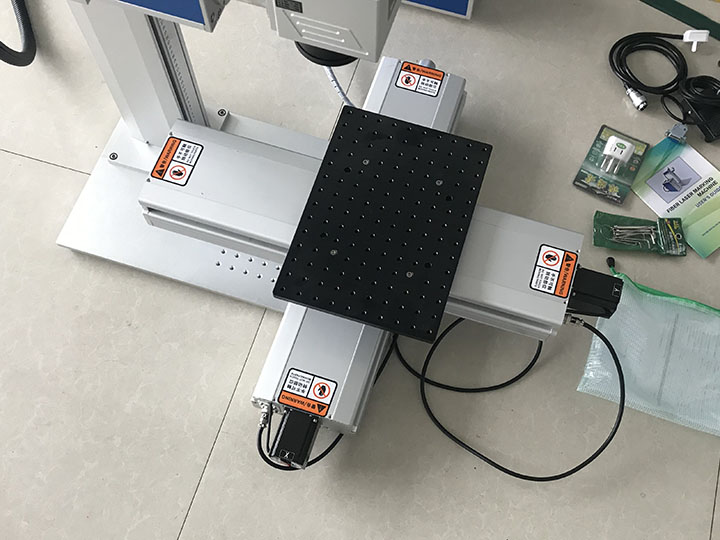

the maximum marking area of a traditional laser machine is 300*300mm. the most economical fiber laser marking machine uses an xy-axis moving worktable to expand the working area to 400*400mm, 500*500mm, 400*600mm and more worktables. size.
1. long service life: the service life of the laser engraving machine is very long, more than 100,000 hours.
2. high precision: repeated positioning accuracy reaches 0.002mm.
3. easy to operate: the laser engraving machine can use the galvanometer scanner and electronic control to correct the engraving every time.
4. save energy: the photoelectric conversion efficiency is as high as 30% or more.
5. 2 to 5 times faster than traditional engraving machines.
6. professional: bjjcz control panel and ezcad marking software.
7. maintenance-free: no consumable spare parts are required during operation, no maintenance is required, and it is very suitable for continuous work.

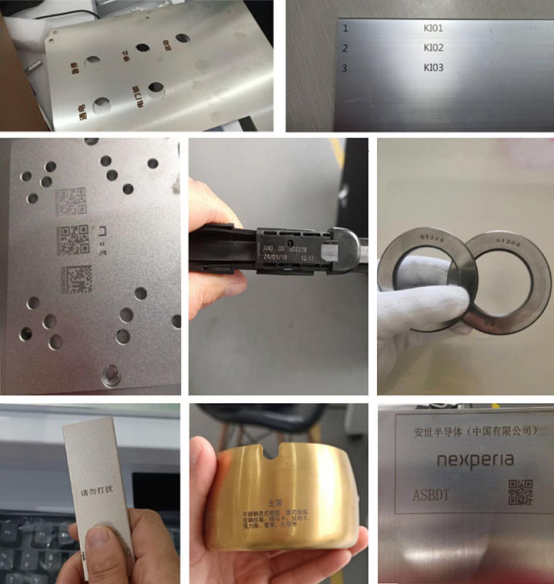

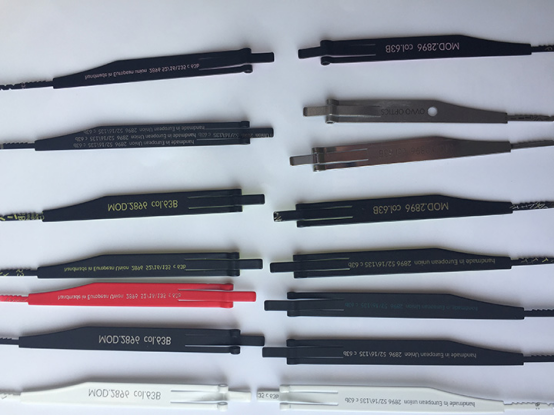

the most affordable fiber laser engraving machine for etching and engraving phone cases on tpu, plastic, silicone, carbon fiber, leather and synthetic materials, wood and metal (aluminum, stainless steel, titanium, gold, silver), best budget laser engraving machine mainly used in electronic and communication products, ic products, wires, cables, computer components and electrical appliances.

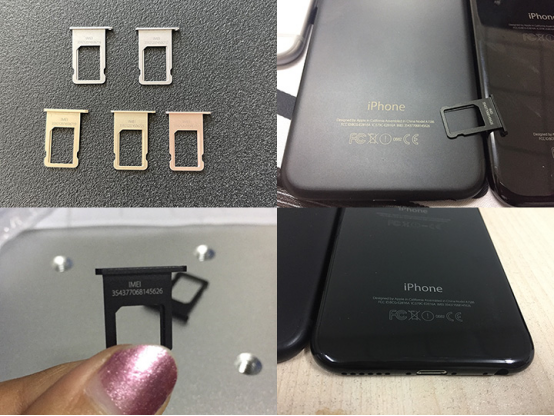

recently, major mobile phone and tablet manufacturers such as apple, samsung, huawei, zte, lenovo, and meizu have begun to use laser engraving machines to mark mobile phone casings, casings, imeis, trademarks, models, etc.
fiber laser engraving machines can be equipped with different laser powers, such as 20w, 30w, 60w, 80w, 100w, 150w mopa laser sources or 20w, 30w, 50w, 100w ordinary fiber laser sources suitable for different uses and costs.
